Folding Door

Surface Treatment

• Standard door color is white & gray.
• Available for customized color by RAL color series.
• Galvanized steel hardware surface treatment is anodized galvanized.
• Aluminium alloy hardware surface treatment is spraying painted.

Safety Operation

• Manual folding door operated by latch &handle.
• For motorized folding door, clutch can be used to open the door when automatic lock in closed position.

Optional

• Special RAL -color is available for one-side panel / two-sides panel / hardware.
• Lower-noisy motor optional(different speed can be set up by motor).
• Double-layers glass or single-layer glass.
• Tempered glass or PC panel.
• Wicket door and visual window are available.

Different Operation

• Remote controller
• Card
• Geomagnetic
• Sensor
• Radar

Opening Direction

Door Design

24V Motor Optional

• Liquid crystal display panel (multiple language ),easy to install and test.
• Electronic limit switch, precise and stable for limit open&close.
• Connect the external device manually.

Single-Skinned Folding Door

• With modern and futurist look
• A flexible door
• U value is 1.1W/M2 ‘K
• Noise can be reduced in 55 dB

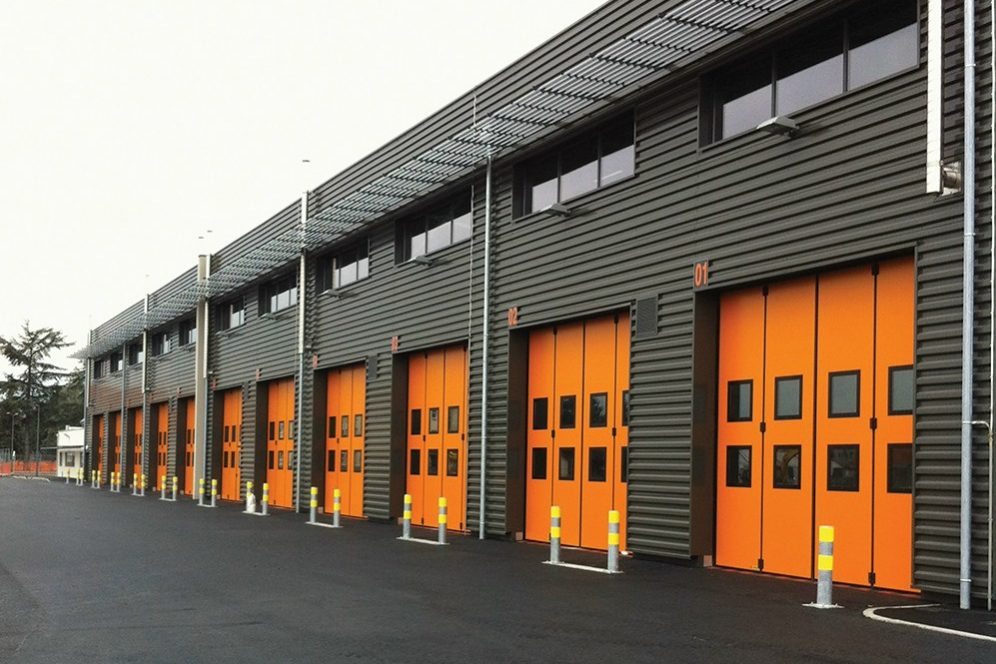

Fire Brigade Folding Door

• Fireproof folding door.
• high-speed opening / normal speed opening optional.
• The fastest speed up to7 seconds;normal speed between 16-26seconds according to door width.

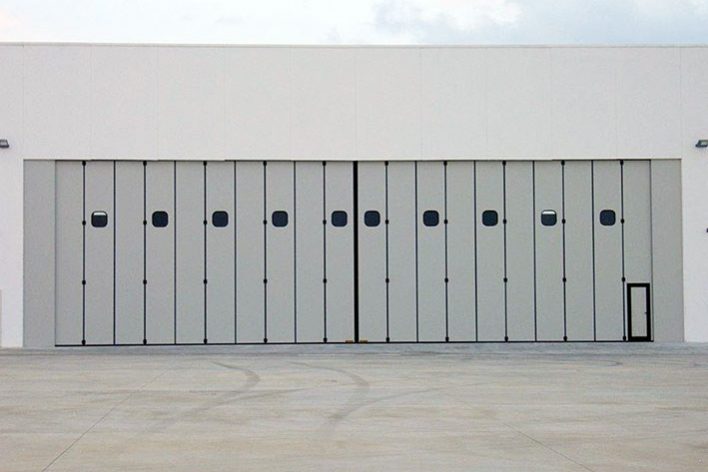

Double-Skinned Folding Doors

• Extremely good heat insulation UD = 1,9 W/m2
• Quiet door action,easy operation
• Storm proof up to wind class 4 (144 Km/h)
• Smooth and extremely quiet door action due to new guide technology
• Easy and quick installation – without welding
• Low-wear and maintenance-free components
• Long service life
• Also available with threshold-free wicket door
  (suitable for escape routes and emergency exists)
• Robust and flush mounted door leaf made of 57mm or 77mm thick elements

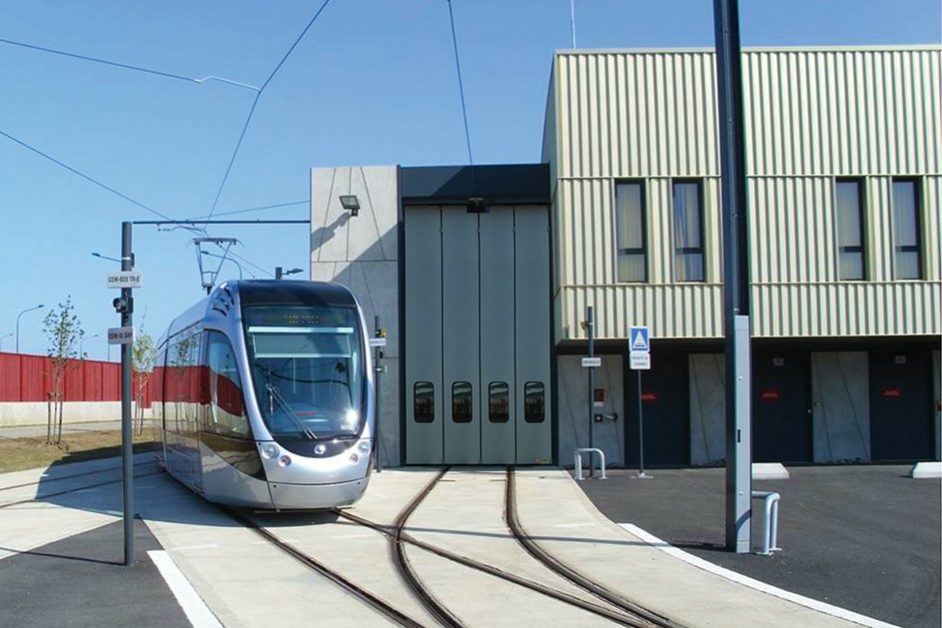

Subway Folding Door

• Invisible door frame design: the door frame is made of cold-rolled galvanized steel, and designed with U-shaped concave and convex grooves molded by imported rolling machine. It was covered with 0.6mm to 1.2mm of galvanized steel plate or aluminum alloy plates on both sides, foamed overall.

• Energy saving: The door has multi-section structure which can save energy by parts of the door be opened to reduce the heat loss.

• Insulation: Foaming density 59KG/m3.The door top frames use high-density double-layer brush, each door panel sealed with EPDM.

• Top rail: The top rail is made by 4mm  galvanized steel plates,and mounted directly on the side wall.

• Bottom water deflector: The bottom water deflector is made of 2mm thickness aluminum alloy guide with a angle of waterproof slope (or more special design configuration). The bottom water deflector is configured as standard for more than sections/panels in a single door, and it is optional for less than two sections/panels.

• Hangling wheels: Hanging wheels are made of sealed bearings and PA66 nylon.four wheels design can increase the strength and make the door move smoothly.

• Panel thickness
• door panel material is galvanized steel or aluminum, thickness is 0.6mm-1.2mm.The thickness of panel is 57mm or 77mm.

• Door and element size: Standard element width is from 650mm to 1200mm; 77mm panel,Max.height is 13000mm; 57mm panel,Max.height is 8000mm.
