BRIGHT AND FRIENDLY ENVIRONMENT GLAZED ALUMINIUM SECTIONAL DOOR
Anti-pinch aluminium alloy industrial door

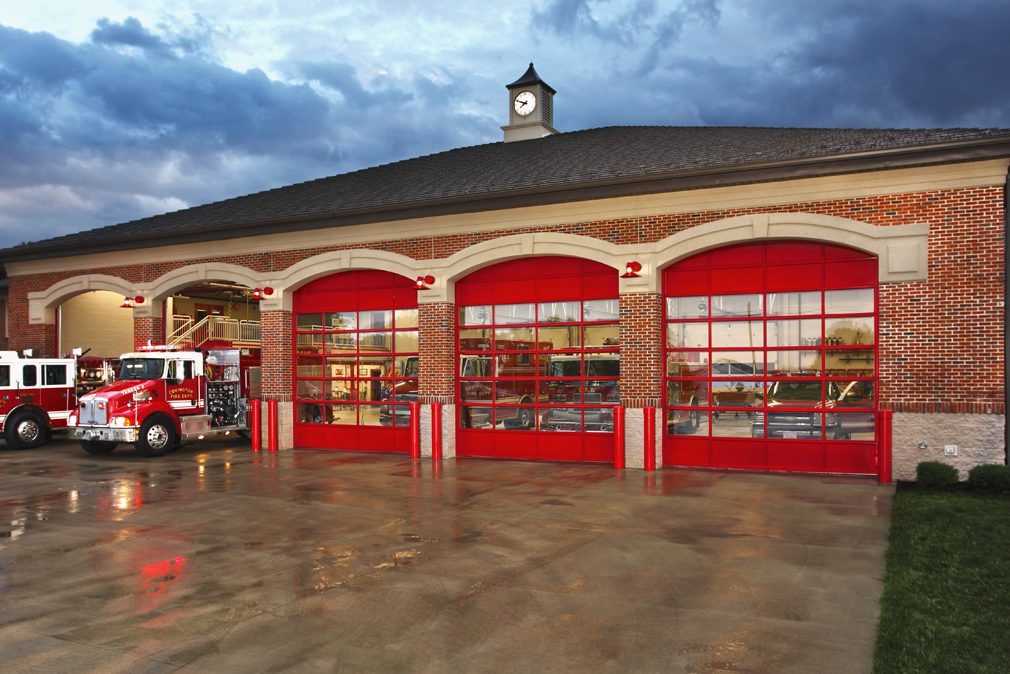

Our glazed industrial door was made of aluminium frame sections and glazing elements is extremely light permeable and provides an elegant optical appearance to any warehouse building. The glazing shapes and patterns can be designed individually. Optimum light incidence creates a positive and pleasant work environment. It  was widely used in high-end auto 4S shops and all types of business premises.

TEL: 0086-13524123918
Email: sale@industry-doors.com

Panel Design Option

Aluminum Alloy Frame Option

335 model
The door width Max. reach to 4500mm.

336 model & 336A model (Patent model)
The door width Max. reach to 5500mm. Reinforcing bar is 80mm, thickness is 2.5mm.

336A version (Patent model)
The door width Max. reach to 6000mm. Reinforcing bar is 100 mm, thickness is 2.5 mm.

337 model (Patent model)
The door width Max. reach to 8000mm.Reinforcing bar is 100 mm. thickness is 2.5 mm.

Hardware Option

  • Glazed Part: 5mm tempered single layer; 3 mm polycarbonate single layer; 3 mm + 2mm polycarbonate double layers.
  • Hinge: Standard hinge is galvanized steel hinge; aluminum hinge & stainless steel hinge are available for morestrength and strong resistance to oxidation.
  • Operation: Electric operation or chain hoist manual.
  • Track: 2’’or 3’’ track.
  • Wicketdoor: The equipment with an integrated wicket door offers unhindered passage.
  • Safety: Spring break device; Defending falling down device; Sensor.

Finishing Option

Standard finished include white (RAL9010 ), light grey (RAL9006) and clear anodized finish.

Premium finishing options include:

  • RAL color powder coat;
  • Custom powder coating;
  • Bronze, dark bronze, black or custom color anodized finishing.
