ROLL-UP SHEET DOORS

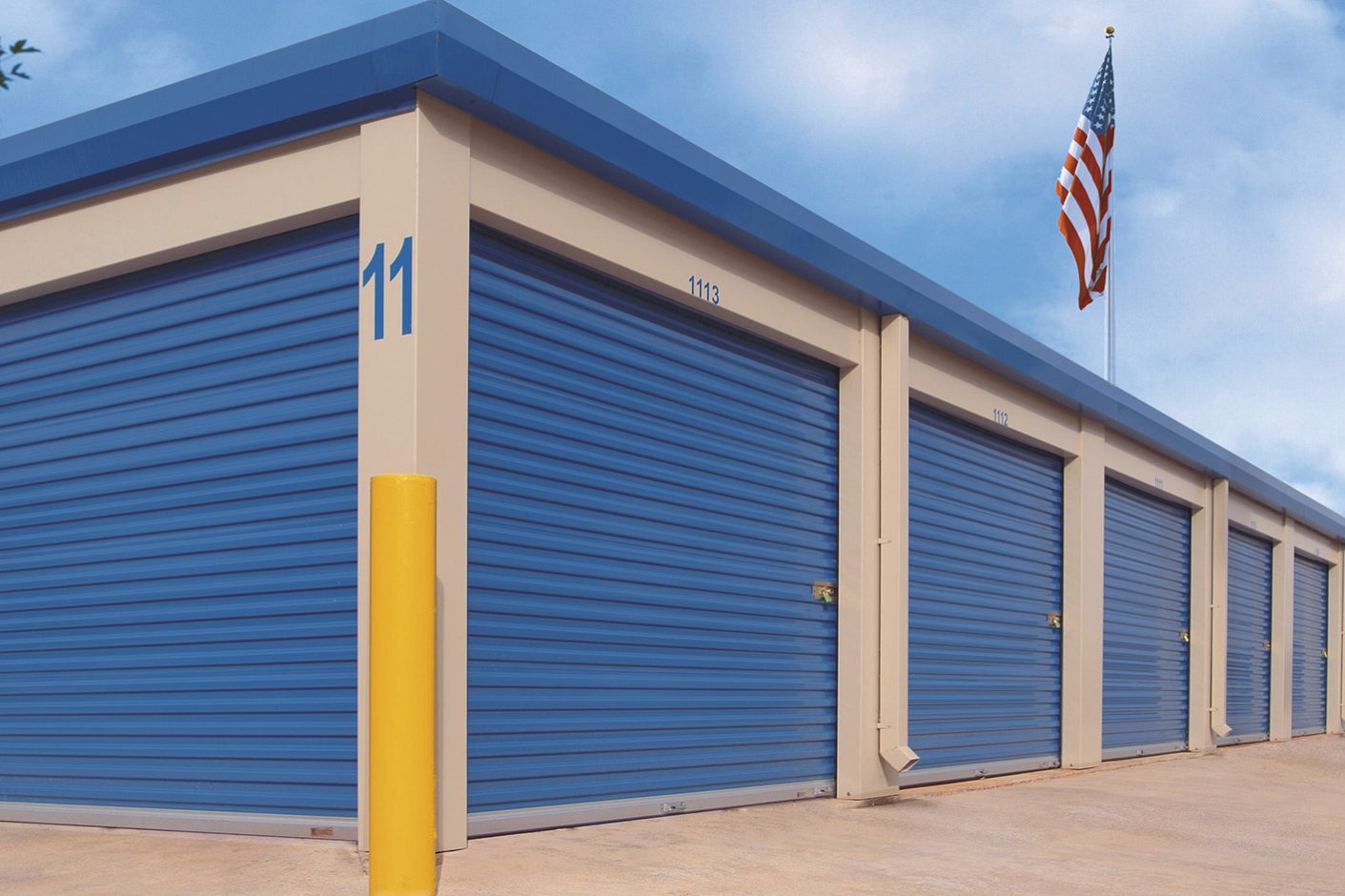

Roll-up sheet doors are ideal for mini warehouse and storage facilities. Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides.It features Overhead Door’s innovative quick-connect components that allow quick and easy assembly without sacrificing stability or durability. Stepped counterbalance rings and a unique curtain profile minimize nesting. The universal guide design further simplifies installation by allowing mounting directly to concrete, masonry, steel or wood jambs.
TEL: 0086-13524123918
Email: sale@industry-doors.com
- Electric operator
- Chain hoist with reduced drive, non-handed quick-connect components
- Curtain lock; two-bolt, double shackle lock or cylinder lock
- Jamb extension brackets for steel/wood jambs
- Header draft seal
Color Options
Standard max width
16′ (4877 mm)
Standard max height
16′ (4877 mm)
Curtain
26-gauge, roll-formed galvanized steel sections, interlocked and seamed to form full door height
Curtain rub strips
Flexible webbing on both front edges
Curtain material
High strength steel
Counterbalance Assembly
12″ (305 mm), steel stepped rings to minimize headroom and enhance door operation
Universal guides
18-gauge, roll-formed galvanized steel with pre-punched through-hole design for mounting to concrete, masonry, steel or wood jambs
Headplate
11-gauge steel
Bottom bar
Extruded aluminum reinforced with steel, roll-formed angles
Quick-connect bottom bar stops
12-gauge galvanized steel
Bottom seal
Bulb-type, astragal seal
Guide rub strips
Polypropylene strips on both edges
Standard springs
3 3/8″ (86 mm) torsion springs
Operation
Manual or non-handed reduced drive chain hoist (depending on door size) with quick-connect components
Lock
Dual slide-bolt locks on bottom bar
Exterior/interior finish
Paint finish in choice of 11 standard colors: white, glossy white, garnet red, royal blue, polar blue, forest green, desert tan, dark teal, teal, walnut brown and bronze
