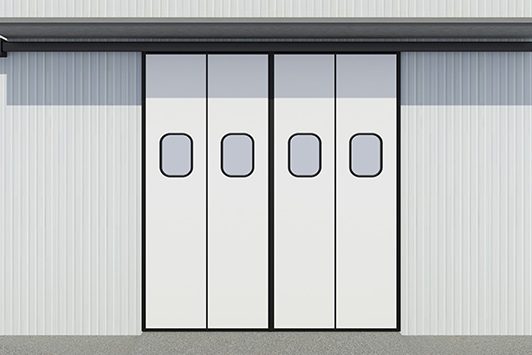

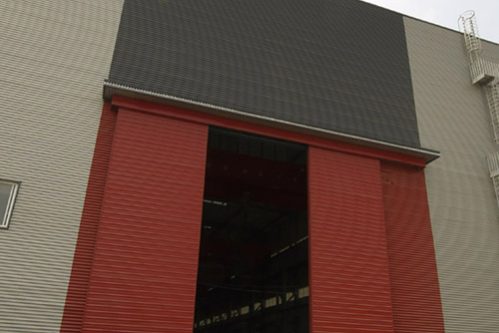

MANUAL AND MOTORIZED SLIDING DOOR FOR INDUSTRIAL FIELDS
With mechanical & electrical integration, the sliding door consists of door, drive system, control system, guide rail and guider. The high-quality door can protect your environment from cold air or other external factors and saves energy, it has advantages of high automatization, nice appearance, stable, safe and low cost etc.
TEL: 0086-13524123918
Email: sale@industry-doors.com
Stainless steel also available
Double-skinned insulated
Installation in:
Masonry, concrete, autoclave aerated concrete, steel constructions.
Dimensions:
Width 1000 – 8500 mm, Height 2000 – 6000 mm.
Door leaf:
● Single elements, double-skinned, 72 mm thick;
● Sheet thickness: 1 mm .
Door seal:
● Galvanized seal profile, 2 mm thick, on 3 sides;
● guide shoe or guide rollers (lower door guide mechanism).
Surface:
Galvanized and prime coated door leaf/door seal, grey-white RAL 9002.
Fittings:
● Tubular runner rails with height-adjustable ball ;
● bearing double twin running gears;
● 2 end stoppers;
● 1 recessed handles.
Components
Electric control system is mainly composed of main control cabinet, electric control box, contact device, automatic protection device and so on. Programming control is flexibility, security and reliable.
Drive system
Drive system consist of the drive motor, coupling, electromagnetic brake, worm gear reducer, manual friction clutch, secondary sprocket, driving wheel, etc. It has function of emergency braking and overload protection, ensures the safety of the door.
Door Profile
Please contact us by sale@industry-doors.com,we will email complete brochure to you in 24 hours!
