ENERGY EFFICENCY INDUSTRIAL SECTIONAL DOOR
polyurethane insulated steel doors r-values to 25

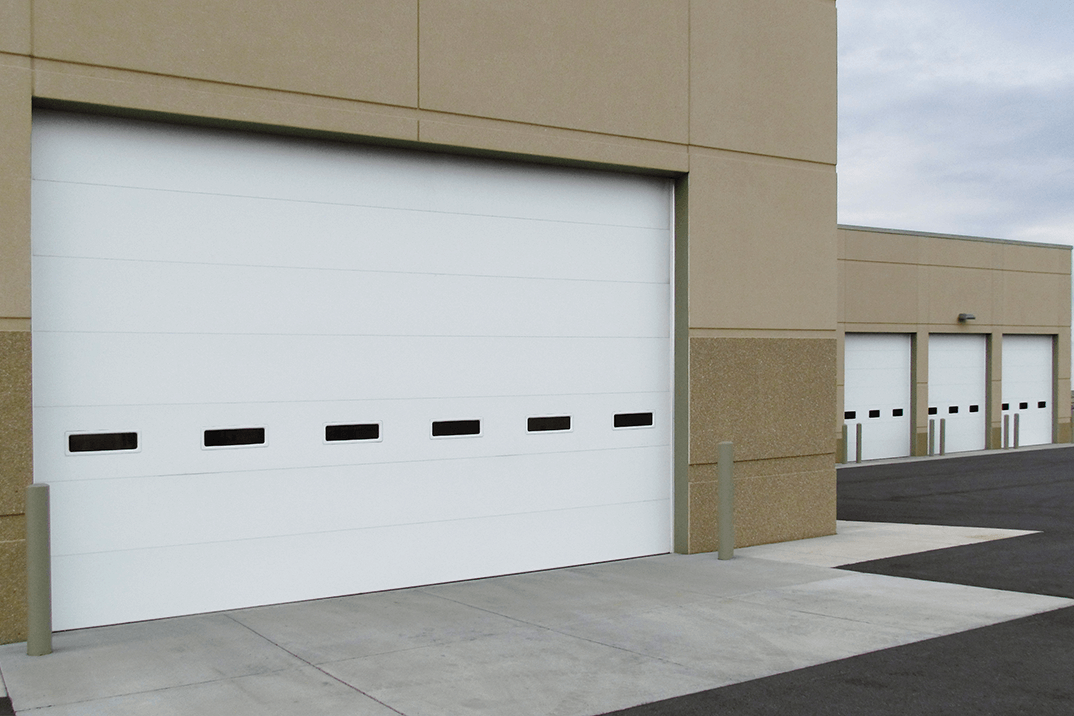

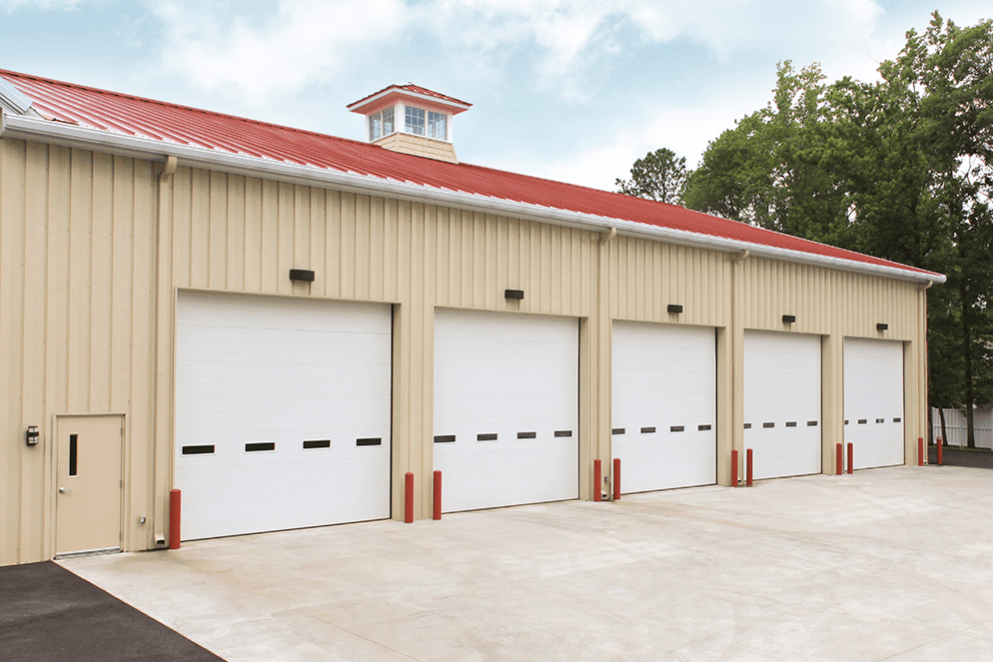

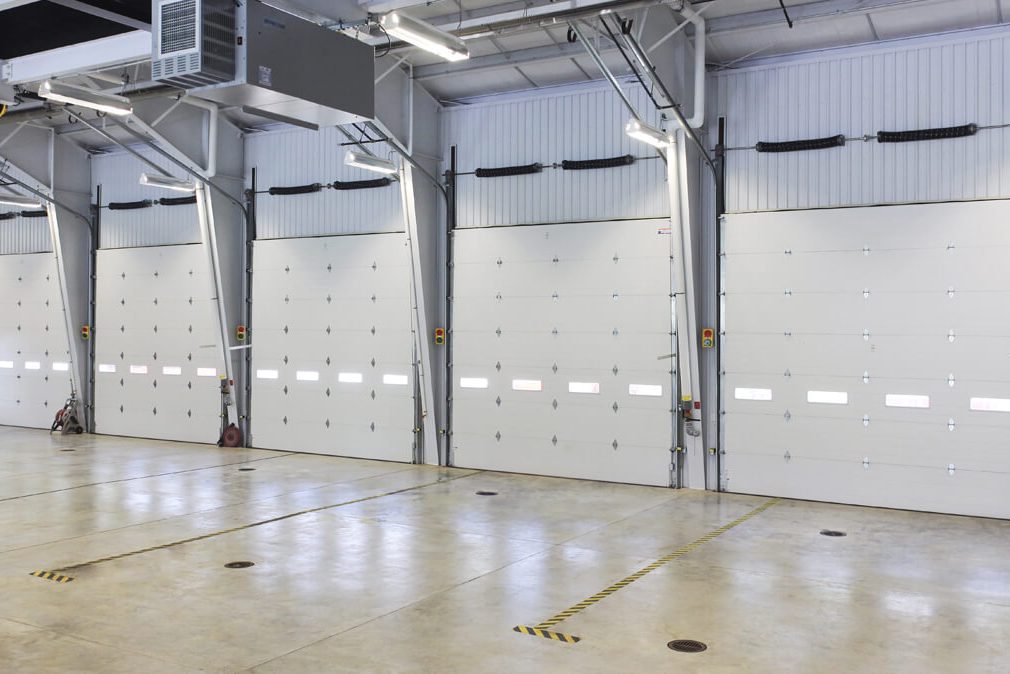

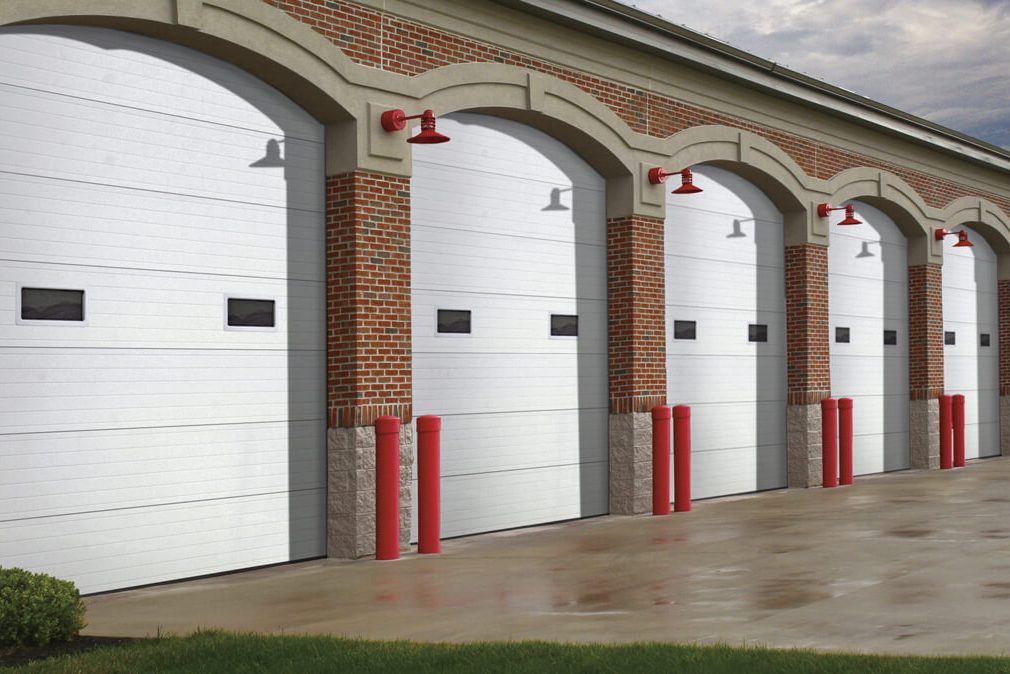

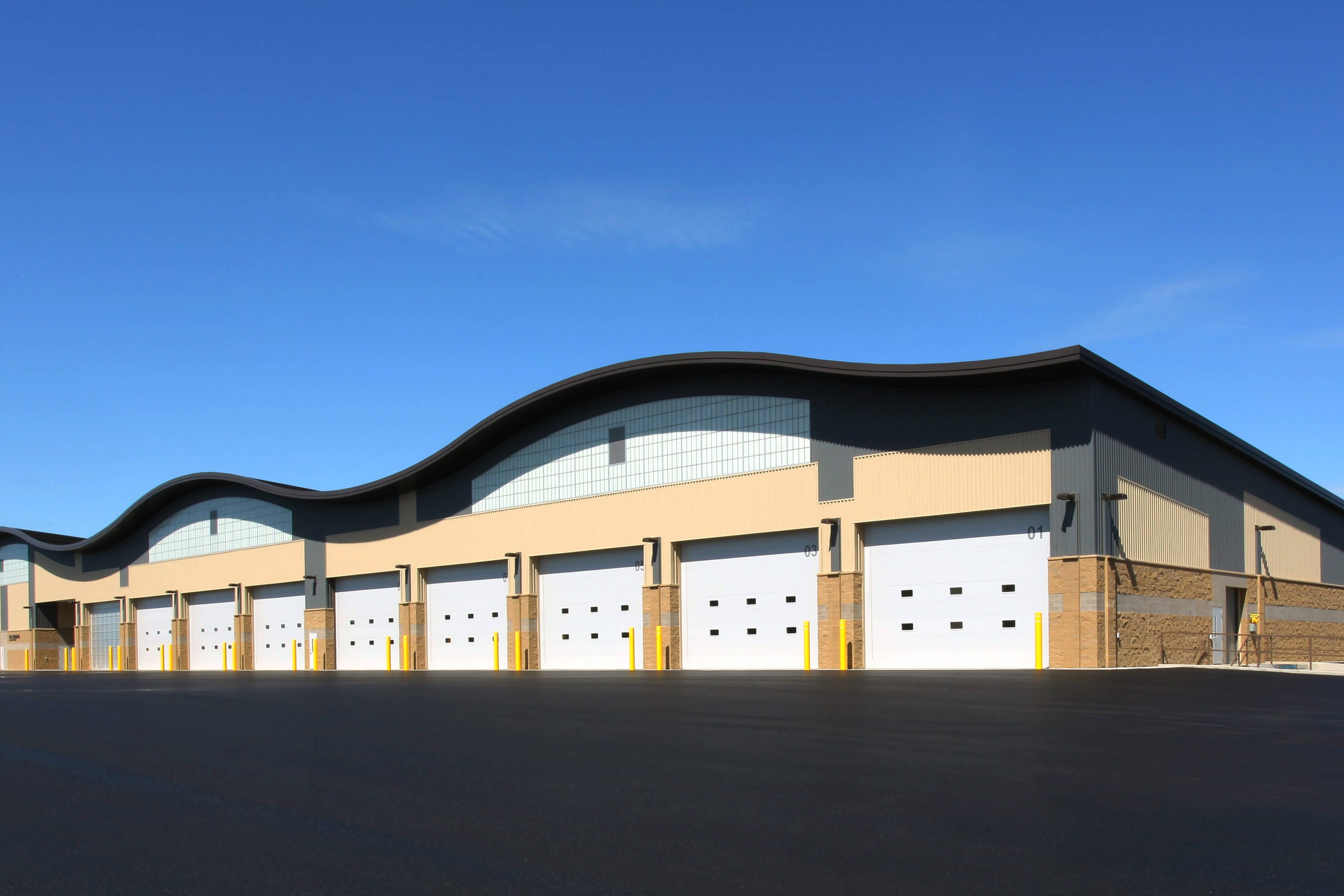

The industrial sectional door made of steel slats guarantees maximum security and reliability. The double-skinned polyurethane foam core design is providing excellent temperature control, energy efficiency and long-lasting service for a wide range of applications, such as firehouses, warehouses, and municipal buildings.
TEL: 0086-13524123918
Email: sale@industry-doors.com
Panel Design Option
Surface Finish Option
Window Design Options
Color Options
Available for RAL Colors, you can select color will match the color of its exterior with a factory finish.
- Deep tongue and groovejoint finger-Guard panel
- Intermediate seals
- prevent air infiltration
- polyurethane foam coreis enclosed by 25 gauge galvanized steel on the inside and outside
- bottom weather seal keeps out wind, rain, debris and other elements for added energy savings.
| Panel Design: | 2″ thick stucco embossed ribbed steel,centre-ribbed exterior |
| Steel Gauge: | 27 gauge exterior; 28 gauge interior |
| Joint Design: | Tongue & groove Finger-Guard joint |
| Thermal Conductivity: | R-value 22.2* for maximum energy efficiency |
| Paint: | unlimited color will match the color of its exterior with a factory finish |
| Colors: | white, brown, light grey, silver |
| Limited Warranty: | 5-year panel / 5-year hardware / one-year material & workmanship |
Engineering Excellence
Unique precision hinges with solid pivoting shaft to minimize wear on moving parts to provide long service life. All center hinges utilize a steel reinforcing backer plate for added structural integrity.Deep tongue and groove section profile adds to the door’s overall structural integrity and its longterm performance
Quality in Every Layer
The structural integrity of each section is enhanced inside and out to offer maximum protection against the elements to provide you with a long lasting surface finish and reduced maintenance cost. The bonding adhesive is applied to the galvanized coated steel substrate, followed by a durable primer coating. The thick insulating core of high-grade CFC-free polyurethane rigid foam is injected evenly in a continuous computer-controlled process.
Design Size
The standard section heights, 18” and 24” allow evenly placed ribs throughout the entire door height. The section joints appear seamless and offer a clean and balanced look to any building’s exterior.
With high thermal insulation properties and Stucco-textured exterior/interior surfaces, it allow maximum protection against harsh environment and minimizes the formation of water condensation on the inside door surface.
he uniquely designed FingerGuard™ pinch-resistant section joints prevent fingers from getting caught between the door sections. This increases the safety of your facility and reduces the risk of injuries which may result in worker’s compensation claims.
Commercial Hardware
10,000 cycle torsion springs or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
Spring break device
In case of the spring broken, this device will stop the door from falling by blocking the solid shaft firmly.
C-shaped 2” or 3” track
track forming machine&bending machine assure the tracks right shaped, straight and with smooth surface.These high quality tracks make the door move smoothly and noise less.
Commercial 10 ball steel rollers with options for nylon tire rollers.
Galvanized steel hinge, high intensity, fine appearance.
In the case of cable broken, cable break device will stop the door from falling by catching into the vertical track with the blade mounted on the side.
the lip of the side seal will press on the outside surface of the door panel after the door installation.
The aluminium bottom seal will cling to the ground completely along the full length of the door width when the door is closed.
Aluminium top seal lip will cling to the wall when the door is closed.
lastic handle, color black
The spring bumper is to prevent the door from rushing out of the track accidentally and provide a proper force to help the door start to move down
To enforced the wide doors, galvanized steel reinforce profile will be installed on every panels; its unique designed shape gives optimum stiffness at the lowest linear meter weight.
Please contact us by sale@industry-doors.com,we will email complete brochure to you in 24 hours!
